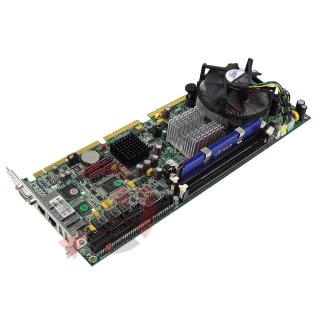

Portwell ROBO-8913VG2AR Single Board Computer Intel Core2 Duo 2GB DDR2

Artikel zurzeit vergriffen
  • Artikel vergriffen



Portwell

ROBO-8913VG2A R  Single Board Computer Intel Core2 Duo 2GB DDR2 RAM

Modell: ROBO-8913VG2AR



Technical data / Technische Daten

Manufacturer / Hersteller

Portwell Inc.

Type / Gerätetyp

Single Board Computer

Formfaktor

Plug-In-Modul

Processor / Prozessor

Intel Core 2 Duo LGA775 1066MHz VT-x

Power Supply

Typical: +12V@2.7A; +5V@6.7A, Supports ATX mode

Interfaces / Schnittstellen

Super I/O: Winbond W83627HG-AW

Audio: Intel 82Q35 Realtek ALC262-VC2 LQFP48 codec, 2.1 channels

Ethernet: 2 x Gigabit Ethernet RJ45 Ports with two LED indicators

Serial Port: 1 x RS232 Port, 1 x Selectable RS232/422/485 Port

USB: 12 x USB 2.0 (4 über Backplane)

Keyboard & Mouse: 2 x USB 2.0 Ports (on bracket)

GPIO: On board programmable 8-bit Digital I/Os

Others: 1x parallel Port IrDA 1.0

Display: 1 x VGA on bracket: Resolution up to 2048x1536 @75Hz

Bus Interface

1 x PCI Express x16 Gen 1 up to 2.5 GT/s

4 x PCI Express x1 Gen 1 up to 2.5 GT/s

4 x PCI devices at 32-bit 33MHz

Storage Devices

6 x SATA II drivers (Dual SATA ports via Backplane)

RAID Level: 0,1,5,10

1 x FDD channel on board box header

Chip Set

Intel ICH9DO VT-d

Memory / Speicher

2GB DDR2 800/667 SDRAM (max. 4GB)

Dimensions / Abmessungen

338.5 x 126.4 mm

Standards

EN 55022/24,  CISPR 22, FCC Part 15 Class B, IEC 61000-4,  RoHS, CE

Delivery / Lieferumfang

1 x  ROBO-8913VG2AR PICMG 1.3 Single Board Computer




More information and details can be found on the pages of the manufacturer.
Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.

No warranty on used batteries!
Keine Gewährleistung auf gebrauchte Akkus!

All parts are used but 100% OK!!!
Alle Teile sind gebraucht aber 100 % in Ordnung!!!





Formfaktor: ATX
Herstellernummer: ROBO-8913VG2AR
Marke: Portwell Inc.
Sockeltyp: LGA 775/Sockel T
Speichertyp: DDR2 SDRAM
Versandgewicht: 4,00 kg
Artikelgewicht: 2,00 kg
