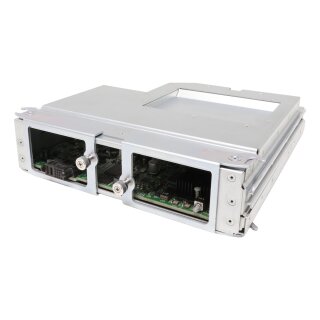

Cisco Cisco N9K-C9504-FM V01 Fabric Module for N9504 with 100G support, ACI and NX-OS (Model: N9K-C9504-FM V01) Model: N9K-C9504-FM V01 P/N: 700-45978-02 Rev A0 P/N: 800-42903-01 K0+ |
|
|
Technical data / Technische Daten |
|
|
Manufacturer / Hersteller |
Cisco |
|
Module protocol / Modul Protokoll |
NX-OS mode; Clos fabric design |
| Device Type / Gerätetyp | Koppelfeld-Module, Fabric Module |
|
Internal ports / Intern Anschlüsse |
36-port 100 Gigabit Ethernet Quad Small Form-Factor Pluggable 28 (QSFP28); 32-port 100 Gigabit Ethernet QSFP28; 36-port 40 Gigabit Ethernet QSFP+; 32-port 40 Gigabit Ethernet QSFP+ |
|
Parent requirements / Parent Anforderungen |
4 x 100-Gbps fabric modules (N9K-C95XX-FM-E) for maximum bandwidth; 4 100-Gbps fabric modules (N9K-C950X-FM-E) for maximum bandwidth; 4 new fabric modules (N9K-C950X -FM-S) for maximum bandwidth; 6 fabric modules for maximum bandwidth; 3 fabric modules for maximum bandwidth; 4 fabric modules for maximum bandwidth |
|
Features licensing / Merkmale Licensing |
Powered by Cisco Cloud Scale technology; Supports VXLAN routing and bridging; NX-OS mode only; Supports Virtual Extensible LAN (VXLAN) routing and |
|
Power airflow / Stromversorgung Luftstrom |
95W; 234W; 171W; 176W |
|
Compatibility / Kompatibilität |
N9K-X9732C-EX; N9K-X9736C-FX; N9K-X9736C-FX3; N9K-X9736Q-FX; N9K-X9716D-GX |
|
Delivery contents / Lieferumfang |
1 x Cisco N9K-C9504-FM V01 Fabric Module for N9504 with 100G support, ACI and NX-OS |
|
The hardware has been overhauled and tested by us. Die Hardware wurde von uns überholt und getestet. More information and details can be found on the pages of the manufacturer. Weitere Informationen und Details finden Sie auf den Seiten des Herstellers. |
|
| Item information | Value |
|---|---|
| Shipping weight: | 3,10 kg |
| Item weight: | 2,70 kg |
| Module protocol: | NX-OS mode; Clos fabric design |
| Internal ports: | 36-port 100 Gigabit Ethernet Quad Small Form-Factor Pluggable 28 (QSFP28); 32-port 100 Gigabit Ethernet QSFP28; 36-port 40 Gigabit Ethernet QSFP+; 32-port 40 Gigabit Ethernet QSFP+ |
| Parent requirements: | 4 x 100-Gbps fabric modules (N9K-C95XX-FM-E) for maximum bandwidth; 4 100-Gbps fabric modules (N9K-C950X-FM-E) for maximum bandwidth; 4 new fabric modules (N9K-C950X -FM-S) for maximum bandwidth; 6 fabric modules for maximum bandwidth; 3 fabric modules for maximum bandwidth; 4 fabric modules for maximum bandwidth |
| Features licensing: | Powered by Cisco Cloud Scale technology; Supports VXLAN routing and bridging; NX-OS mode only; Supports Virtual Extensible LAN (VXLAN) routing and |
| Power airflow: | 95W; 234W; 171W; 176W |
| Compatibility: | N9K-X9732C-EX; N9K-X9736C-FX; N9K-X9736C-FX3; N9K-X9736Q-FX; N9K-X9716D-GX |
