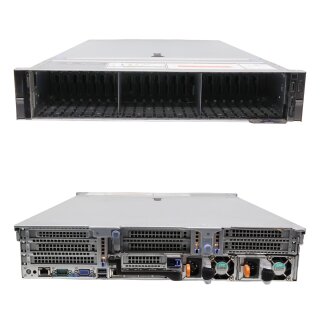

Dell PowerEdge R7425 Server ohne CPU ohne RAM H740P 12Gb/s 24x 2,5" SFF HDD Bay

Dell Inc.

Dell PowerEdge R7425 Server ohne CPU ohne RAM H740P 12Gb/s 24x 2,5" SFF HDD Bay

Modell: Dell PowerEdge R7425

Technical data / Technische Daten

Manufacturer / Hersteller

Dell Inc.

Manufacturer part number

E38S002

Model number

PowerEdge R7425 / E38S Series

Form factor / Formfaktor

Rack (2U)

Processor support / Prozessor Unterstützung

Two AMD EPYC processors (AMD SP3 LGA-4094 socket) / AMD EPYC 7001-Series

Memory slots / Arbeitsspeicher Steckplätze

32 DDR4 DIMM slots; 32 DIMM slots

Memory types / Arbeitsspeicher Types

RDIMM, LRDIMM; RDIMM, LRDIMM with speeds of 2666 MT/s, 2400 MT/s, 2133 MT/s, and 1866 MT/s

Maximum memory / Maximal Arbeitsspeicher

4 terabytes; 2TB (dual processor, LRDIMM Quad rank)

Memory speed / Arbeitsspeicher Geschwindigkeit

2666 MT/s, 2400 MT/s, 2133 MT/s, and 1866 MT/s

Drive bay options / Laufwerk Schacht Optionen

Up to 24 x 2.5” SATA/SAS/NVMe or up to 12x 3.5” SAS/SATA HDD (Front); Up to 4 x 2.5” NVMe or up to 4 x 3.5” SAS/SATA HDD (Mid); Up to 4 x 2.5” or 2 x 3.5” SAS/SATA HDD (Rear); up to four 2.5 inch (SAS, SATA or Nearline SAS) rear accessible drives in slots 24 to 27

Storage controller options / Speicher Controller Optionen

PERC H330, H730p, H740p, HBA330 (Internal); HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module (Boot Optimized Storage System); H840 (External PERC); 12Gbps PERC9 or 10 series, PCIe PERC x8 slot

Pcie slots / Pcie Steckplätze

Up to 8 x Gen3 slots,
up to 6 x 16 lanes; eight PCI express (PCIe) generation 3 expansion cards

Network options / Netzwerk Optionen

4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE (Daughter card options); Four RJ-45 ports that support 10, 100 and 1000 Mbps; Four RJ-45 ports that support 100 M, 1 G and 10 Gbps; Four RJ-45 ports, where two ports support maximum of 10 G and the other two ports maximum of 1 G; Two RJ-45 ports that support up to 1 Gbps and 2 SFP+ ports that support up to 10 Gbps; Four SFP+ ports that support up to 10 Gbps; Two SFP28 ports that support up to 25 Gbps

Usb ports / USB Anschlüsse

2 x USB 2.0 (Front); 2 x USB 3.0 (Rear); One internal USB 3.0-compliant port; One optional USB 3.0-compliant port on the front of the system; One micro USB 2.0-compliant port in the front of the system for iDRAC Direct

Video serial ports / Video Serial Anschlüsse

VGA (Front and Rear); Serial (Rear); One serial connector on the back panel (9-pin DTE 16550-compliant)

Remote management / Fernzugriff Verwaltung

iDRAC9 with Lifecycle Controller (no power capping); iDRAC REST API with Redfish support; At-Server iDRAC Direct Quick Sync 2 BLE/wireless module; OpenManage Enterprise,
OpenManage Essentials,
OpenManage Mobile

Power supply options / Stromversorgung Supply Optionen

Titanium 750W, Platinum 495W, 750W, 1600W, 1100W, 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W and 2000W; Two AC or DC power supply units (Hot plug with full redundancy); 2000 W AC Platinum, 2400 W AC Platinum

Dimensions / Abmessungen

Rack (2U), Chassis max depth: 715.5 mm; 482.0 mm width, 434.0 mm depth, 86.8 mm height

Maximum weight / Maximal Weight

28.4 kg (with 2.5 inch drives); 33.4 kg (with 3.5 inch drives)

Delivery contents / Lieferumfang

1 x Dell Inc. PowerEdge R7425 Rack (2U) Server

The hardware has been overhauled and tested by us.

Die Hardware wurde von uns überholt und getestet.

More information and details can be found on the pages of the manufacturer.

Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.
