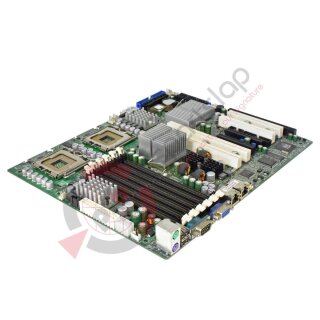

Supermicro X7DVL-E Dual Xeon LGA771 Socket USB 2.0 GBLan Rev:1.21

Artikel zurzeit vergriffen
  • Artikel vergriffen

Supermicro

Server Mainboard

Modell: X7DVL-E
Revision 1.21


Technical data / Technische Daten

Manufacturer / Hersteller

Supermicro

Form Factor / Formfaktor

ATX

Compatible Processors

Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown/Clovertown processor) up to 3.16 GHz
Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale/Woodcrest/Dempsey processor) up to 3.40 GHz

CPU socket / Sockel

Dual 771-pin LGA Sockets

CPU slots / CPU-Steckplätze

2

Installed CPUs / Installierte CPUs

0

Chipset Type

Intel® 5000V (Blackford VS) chipset

Memory slots / Arbeitsspeicher-Steckplätze

6 x FB-DIMM 240-pin DDR2

Memory installed / Speicher installiert

0 ( Max. 24GB supported)

Expansion slots / Erweiterungssteckplätze

1 x PCIe x8
1 x PCIe x4
2 x PCI-X / 133 MHz
1 x PCI / 100 MHz

Storage Interfaces / Speicher-Schnittstellen

ATA-100, Serial ATA-300 (RAID), Serial Attached SCSI (RAID)

Interfaces / Schnittstellen

Six Serial ATA ports
Six SATA hard drives supported

Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
Supports UDMA Mode 5, PIO Mode 4, and ATA/100

2x RJ45 LAN ports

2x USB rear ports
2x USB internal headers
Total 6 USB 2.0 Compliant / 1.1 Compliant

1x VGA Port

PS/2 keyboard and mouse ports
Serial Port / Header
1 Fast UART 16550 serial port
1 Fast UART 16550 serial header

Parallel Port
1 Header for ECP / EEP parallel port

Delivery / Lieferumfang

1x Supermicro Server Mainboard X7DVL-E Revision 1.21
Server Mainboard ohne Zubehör

Drivers and other software are not included. /
Treiber und Software sind nicht im Lieferumfang enthalten.


The hardware has been overhauled and tested by us.
Die Hardware wurde von uns überholt und getestet.

More information and details can be found on the pages of the manufacturer.
Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.

All parts are used but 100% working!!!
Alle Teile sind gebraucht aber 100 % in Ordnung!!!



Herstellernummer: X7DVL-E (Rev:1.21)
Marke: Supermicro
Modell: X7DVL-E
Sockeltyp: LGA771
Speichertyp: DDR2 FB-DIMM SDRAM
Versandgewicht: 2,00 kg
Artikelgewicht: 1,00 kg
