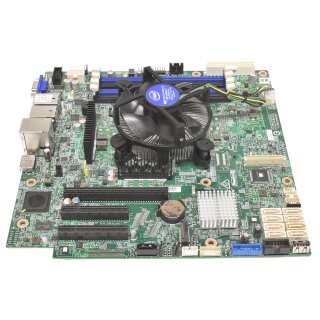

Intel Server Micro-ATX Mainboard S1200SPLR FCLGA1151 i3-1240 v5 4x DDR4 PBA H57532-210 + Heatsink

Intel

Intel Server Micro-ATX Mainboard FCLGA1151 i3-1240 v5 4x DDR4 + Heatsink

Modell: S1200SPLR
P/N: PBA H57532-210, DA0S6EMB6B0

Technical data / Technische Daten

Manufacturer / Hersteller

Intel

Form Factor / Formfaktor

Micro-ATX

CPU socket / Sockel

Socket-H4 LGA1151

CPU Slots / CPU-SteckplätzeCPU Slots / CPU-SteckplätzeCPU Slots / CPU-SteckplätzeCPU Slots / CPU-Steckplätze

1

Installed CPUs / Installierte CPUs

1 x Intel Xeon i3-1240 v5, 4-Core 3.50GHz

Compatible CPUs

Single Intel Xeon Processor E3-1200 v6 or v5, up to 80W

Memory Slots / Arbeitsspeicher-Steckplätze

4 x  (2-Channel) DDR4 SDRAM

Installed Memory / installierter Arbeitsspeicher

Keine

Expansion Slots / Erweiterungssteckplätze

1 x PCI-E Gen3 x8 w/ x16
1 x PCI-E Gen3 x4 w/ x8
1 x PCI-E Gen3 x8 w/ x8
1 x Proprietary slot for a x4 Intel Integrated RAID Module
1 x M.2 SATA SSD connector

Interfaces / Schnittstellen

Connectors:
1 x USB 2.0 Type A
1 x 2x12 SSI
8 x SATA3 6Gb/s
1 x SATADOOM (SATA 4)
1 x TPM 1.2 or TPM 2.0 Module, 2x7 pin
1 x 2x4 pin connector for Intel RMM4 key
1 x DH-10 Serial
2 x USB 2.0/3.0
2 x USB 2.0
Input/Output Ports:
2 x USB 2.0; 2x USB 3.0
1 x Dual 1GBase-T (RJ-45);
1 x Single 1GBase-T (RJ-45)
1 x Display Port
1 x VGA (DB-15)

Operation System / Betriebssytem

none / ohne

Delivery / Lieferumfang

1 x Intel Server Micro-ATX Mainboard FCLGA1151 i3-1240 v5 4x DDR4 + Heatsink
1 x Heatsink

Drivers and other software are not included. /
Treiber und Software sind nicht im Lieferumfang enthalten
