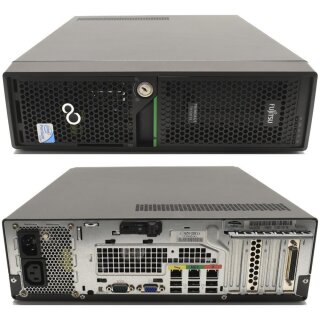

Fujitsu Primergy TX120 S3 Intel E3-1260L 6GB RAM 4Bay 2,5Zoll D2616-A22 GS 1

Artikel zurzeit vergriffen
  • Artikel vergriffen





Fujitsu

Primergy TX120 S3 Server

Intel Xeon E3-1260L 2,40GHz  CPU
6GB DDR3 RAM

RAID-Controller SAS ( D2616-A22 GS1 )

Technical data / Technische Daten

Product

Primergy TX120 S3

Model

PS130-D3049

System No.

S26361-K1380-V101

Part No.

ABN: K1380-V101-332

Case / Gehäuse

LFF (Ultra-kompakter Formfaktor)
(340 mm x 399 mm x 98 mm)

Mainboard-Typ

D3049-A12 GS 2

Slots for drives / Einbauplätze für Laufwerke

1x 5,25 Zoll
4x 2,5 Zoll

CPU / Prozessor

Intel Xeon E3-1260L 2.4GHz
SmartCache: 8MB
Sockel: LGA1155

Compatible cpu`s

Intel Celeron G530, G530T, G620
Intel i3-2100, i3-2120
Intel Xeon E3-1220, E3-1220L, E3-1230, E3-1240, E3-1260L

Number of CPU slots / Anzahl der CPU-Steckplätze

1

Main mermory / Hauptspeicherausbau

3x 2GB = 6GB PC3 DDR3
(4 DIMM slots max. 32GB)

Expansion slots / Erweiterungssteckplätze

1x PCI-Express x16
1x PCI-Express x4 (mechanical x8)
1x PCI-Express x1 (mechanical x4 notched)
1x PCI 3.0 (32 Bit / 33MHz)

Hard Drives / Festplatten

without / ohne

Graphics card / Grafikkarte

onboard

Ethernet Connections / Anschlüsse

2x Gigabit-Ethernet LAN (RJ-45) onboard
1x Management LAN (RJ-45) onboard

Storage Controller

1x RAID-Controller SAS (D2616-A22 GS 1)
2 Ports Intel SATA Controller onboard
4 Ports SATA RAID 0/1 Controller onboard

Drives / Laufwerke

1x DVD-RW

RAID support

yes / ja

USB connections / Anschlüsse

USB 2.0   2x front, 6x rear

Serial connections / Anschlüsse

1x 9-polig (RS-232)

Multi I/O Adapter

-

VGA connections / Anschlüsse

1x VGA 15-polig

Power supply / Netzteil

1x 250 Watt

Installed operating System / Installiertes Betriebssystem

without / ohne

Delivery / Lieferumfang

1x Fujitsu Primergy TX120 S3 Server
1x Power cord / Netzkabel


Drivers and other software are not included. /
Treiber und Software sind nicht im Lieferumfang enthalten.


The hardware has been overhauled and tested by us.
Die Hardware wurde von uns überholt und getestet.

More information and details can be found on the pages of the manufacturer.
Weitere Informationen und Details finden Sie auf den Seiten des Herstellers.



Marke: Fujitsu
Modell: TX120 S3
Versandgewicht: 8,00 kg
Artikelgewicht: 7,00 kg
