EIZO EIZO ColorEdge CG303W |
|
Specifications / Spezifikationen |
|
LCD Panel / LCD-Display |
75.6 cm (29.8 inch), TFT color LCD panel |
Viewing Angle / Betrachtungswinkel |
Horizontal : 178°, Vertical : 178°(CR: 10 or more) |
Dot Pitch / Punktabstand |
0.2505mm |
Dot Clock (Max.) / Punktfrequenz (max.) |
269 MHz |
Horizontal Scan Frequency / Horizontale Abtastfrequenz |
26~100 kHz |
Vertical Scan Frequency / Vertikale Abtastfrequenz |
29.5 - 30.5Hz, 59 - 61Hz (VGA TEXT: 69 ~ 71 Hz) |
Resolution / Auflösung |
2560 dots x 1600 lines |
Display Colors / Anzeigefarben |
16.77 million colors (max.) |
Recommended Brightness / Empfohlene Helligkeit |
120cd/m2 or less |
Display Area / Sichtbare Bildgröße |
641.3 mm (H) × 400.8 mm (V) (25.2" (H) x 15.8" (V)) |
Power Supply / Spannungsversorgung |
100-120 VAC±10%, 50/60 Hz, 1.8A |
Input Signal Connector / Eingänge |
SIGNAL 1:DVI-D, Dual Link |
Signal registration / Signalausrichtung |
10 |
Plug & Play |
VESA DDC 2B / EDID structure 1.3 |
Dimensions with stand |
689 mm (W) x 511.5 ~ 629.5 mm (H) x 254.7 mm (D) |
Weight with stand / Gewicht mit Standfuß |
16.1 kg (35.5 lbs.) |
USB |
USB Specification Revision 2.0 |
Delivery / Lieferumfang |

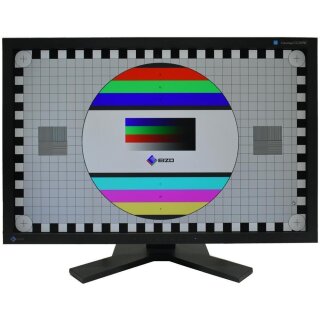

1x EIZO ColorEdge CG303W LCD Monitor B-WARE |
More information and details can be found on the pages of the manufacturer. |
